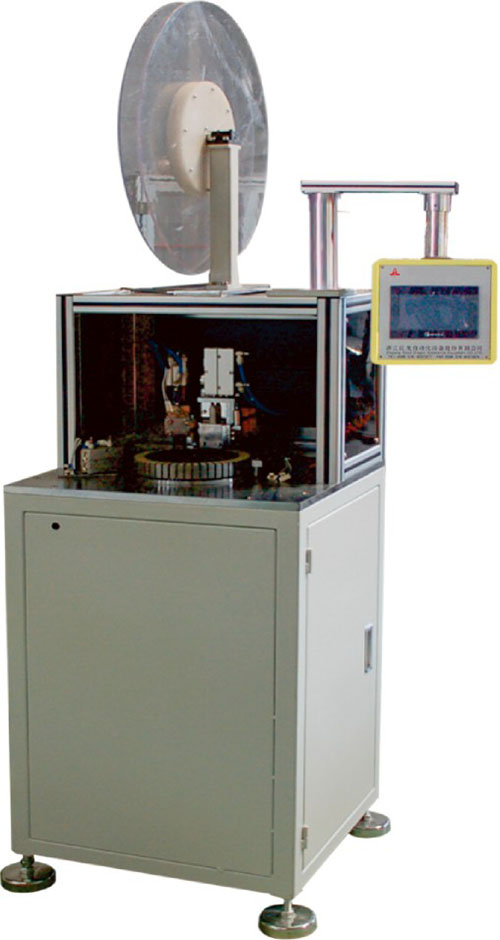

ESP-1型 定子插紙機
ESP-1 Electric Bicycle Coil Paper Inserting Machine
適用于電動車電機槽紙的自動插入，采用PLC程控，步進電機旋轉，中文顯示界面，機械聯動設計。放入定子后自動定作，槽紙自動定長，切斷成形，插入，自動分度，動作一次性完成，操作簡單，生產效率高。
It is suitable for automatic insertion of electric motor motor slot paper, adopting PLC program control, stepping motor rotation, Chinese display interface and mechanical linkage design. Automatically set after being placed in the stator, the groove paper is automatically fixed length, cut and formed, inserted and indexed, and the action is completed in one time, the operation is simple, and the production efficiency is high.
技術參數/Technicai Parameters
| 電源電壓Supply voltage |
AC220V±10% 50Hz |
|
氣源壓力Air pressure |
0.5~0.7MPa |
|
功率Total power |
1.5kw |
| 定子外徑Stator Outer Diameter | Φ198~Φ262mm |
|
定子疊厚Amature Depth |
18~50mm |
