（外繞/拼塊式）WPR- 2/4型 定子自動排繞機
WPR-2/4 Stator Coil Arraying and Winding Machine

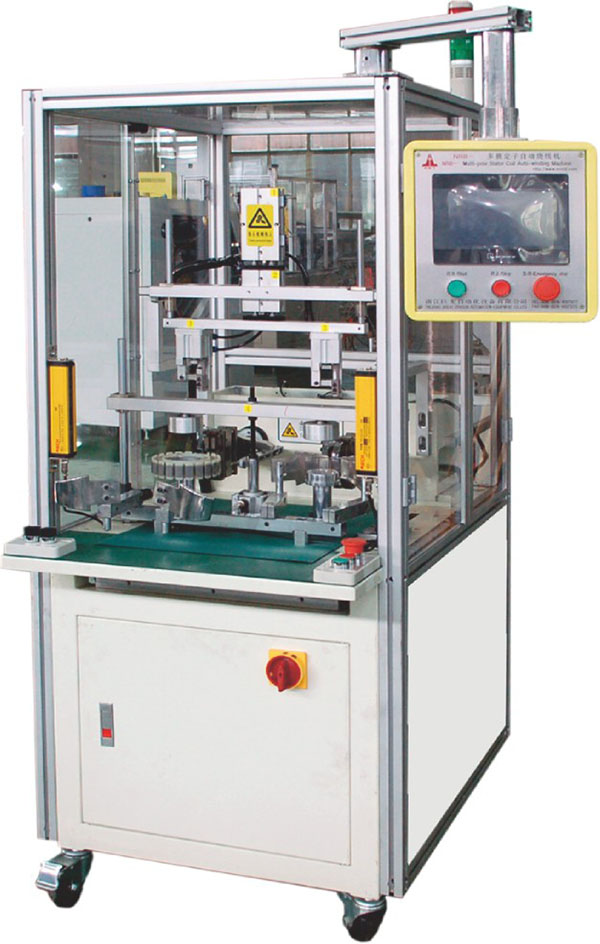

本機用于無刷電機外繞定子的自動繞線，更換工裝后可繞不同的電機定子，工作后可自動繞線，排線，分度，拉線入槽，自動剪線等動作，實現全自動繞線，排列整齊，繞線速度快，生產效率高。工業級人機界面，彩色觸摸屏操作。專業化界面設計，操作方便快捷。 嵌入式模塊化設計，功能強大，客戶可根據自己需求自行編程。以EEPROM存儲，最短保持十年。
This machine is used for automatic outer winding of the brushless motor stator. It can wind different motor stators by replacing the tooling. It can automatically wind, array, index, pull the wire into the slot, trim the wire etc. It comes out coils neatly arranged, with fast winding speed and high production efficiency. Industrial-grade human-machine interface, color touch screen operation. Professional interface design, easy to operate. The embedded modular design is powerful and can be programmed by the customer according to his own needs. The memory is kept in a battery-free design and stored in EEPROM for a minimum of ten years.
技術參數/Technicai Parameters
| 電源電壓Supply voltage |
AC220±10% 50Hz |
|
氣源壓力Air pressure |
0.5~0.7MPa |
|
繞線電機 Winding motor |
1kw |
| 排線電機 Arraying motor | 0.75kw |
|
定子外徑 Stator OD |
Φ30~Φ100 |
| 定子厚度Stator thickness |
10~50mm |
|
適繞線徑Suitable wire size |
Φ0.2~Φ2.0 |
